Zivid 2+ Series
Building on the success of its predecessor, Zivid’s second generation 3D+2D colour camera has surpassed all previous limitations in image quality, accuracy and speed, making it the ultimate choice for achieving remarkable object recognition, precise part manipulation and significantly reduced cycle times in logistics and manufacturing.
Take advantage of powerful structured-light 3D cameras designed for the most demanding machine vision applications:
Image challenging objects
Your objects can be shiny, reflective, cylindrical, very dark or all of the above: Zivid 2+ features artefact reduction technology and 3D high dynamic range (HDR) imaging to let you see the whole scene in a single 3D colour point cloud.

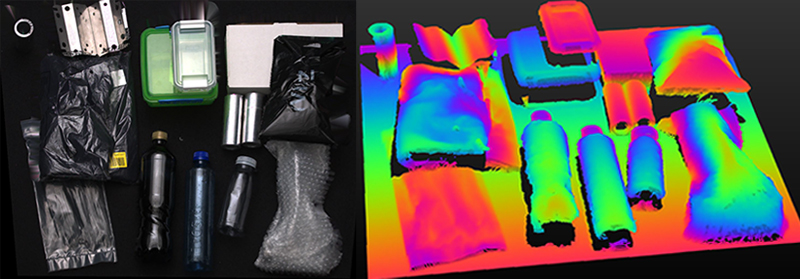

See everything, including transparency
The Zivid 2+ can “see everything” that is presented to it in a piece picking scenario. This includes transparent plastics such as bottles, polybags, shrink wrap and bubble wrap, making it ideal for piece picking, parcel handling and bin picking applications.
3D colour with white LED projector
You can output colour images, giving you the advantage of being able to segment your data based on colour information. In addition, the data acquisition time is independent of the object colours. For example, where a red laser on a blue object requires huge integration times, the Zivid 2+ white LED projector’s integration time is independent of the colour of your objects.
Dimensional trueness has an error of less than 0.2% (mean) and less than 0.1% (standard deviation). These values can be improved with Zivid’s in-field calibration. This means that even the most demanding pick and place or random bin picking applications can be solved with Zivid 2+.
In most picking applications, the return on investment is directly related to the cycle time of the vision system. Zivid has reduced the cycle time to less than 100 ms, significantly improving the efficiency of your robot.
Emergent AI techniques are fundamentally changing the world of automation by training AI on 3D data in addition to 2D data. Zivid 2+ makes this a reality by providing RGB data, 3D data, surface normals, depth map, and SNR with one-to-one pixel correspondence – all captured in the same acquisition. It simplifies the purchase, integration, and maintenance of a part-picking cell.
Application areas

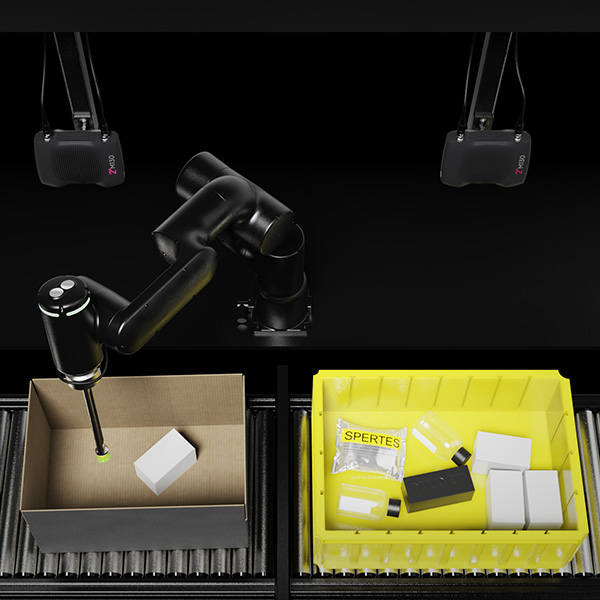

Piece picking in e-commerce
The Zivid 2+ series is designed to accelerate automation in the world of e-commerce order fulfillment by enabling performant piece-picking across millions of inventory SKUs.
Parcel induction in logistics
The Zivid 2+ cameras are ideally suited for high-speed parcel handling in logistics.
Bin picking in manufacturing
The Zivid 2+ excels at capturing images of mixed pallets, big bins, and multiple totes in a single shot, making it the perfect solution for multi-bin piece picking, as well as robot-mounted depalletizing and bin-picking applications in manufacturing.
